FULL VIEW

      ALUMINUM

1

INCH THICK

188

RAL

13

HEAVY DUTY

EXTRUDED

6053-T5

ALUMINUM

CUSTOM

POWDER

COATED

COLORS

INDUSTRY

STANDARD

GLAZING

OPTIONS

3

/

4

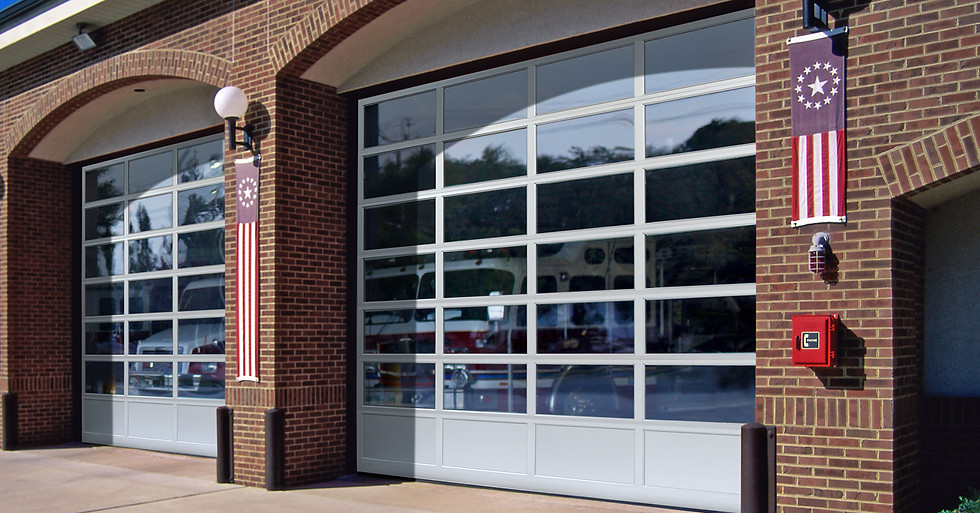

Built to withstand rigorous use in a busy service center, yet offering a clean, contemporary look for many types of architectural applications, General Doors’ Full-view Aluminum Door is an attractive choice when natural light and open visibility are important. Typical installations are as diverse as auto service centers, firehouses, club stores, and upscale retail and restaurant locations.

Options

  • Standard finishes are clear anodized, factory pre-painted white, or bronze anodized

  • Custom colors are powder coated using a selection of 188 stock RAL colors (RALcolor.com)



  • Glazing is 1/8", 1/4", or 1/2" thickness



  • Choose glass or acrylic, clear or tinted, single wall or insulated

  • Solid sections can be aluminum panels or steel urethane sections



  • Reinforcing for Draw Bar operator​



  • Thermal break/friction strip for end caps (with” angle-in” track only)



  • Top seal, jamb seal



  • Extra long life torsion springs (25M, 50M,100M cycle)



  • Pass door- 3-1/2 sections high



  • Wind load package available

  • Heavy Frame option

Colors

Painted White

Bronze Anodized

Clear Anodized

Choose from

188 RAL powder

coat options

Panel Profiles

Due to color variations in computer screens, please refer to your exact color sample chip when choosing.

Aluminum Panel Bottom Section

Solid panel options:

Smooth — .063” thick aluminum panels, clear or bronze anodized or pre-painted white.

Embossed — .016” aluminum skins laminated to a core of either polystyrene (for insulation) or plywood (for strength).

Insulated Steel Panel Bottom Section

Ribbed in White

Multi-Ribbed in Silver

Panel Schedule

Door Width

Up to 9' 2"

9' 3" to 12' 2"

12' 3" to 16' 2"

16' 3" to 20' 2"

20' 3" to 24' 2"

No. of Panels

2

3

4

5

6

Glazing options include (but are not limited to):

  • 1/8” clear DSB (double strength) or tempered glass

  • 1/2” clear insulated glass or tempered insulated glass units

  • 1/8” clear acrylic

  • 1/4” clear polycarbonate (Lexan)

  • 1/4” twin-wall (ribbed) polycarbonate

Gallery

Download the FVA brochure
